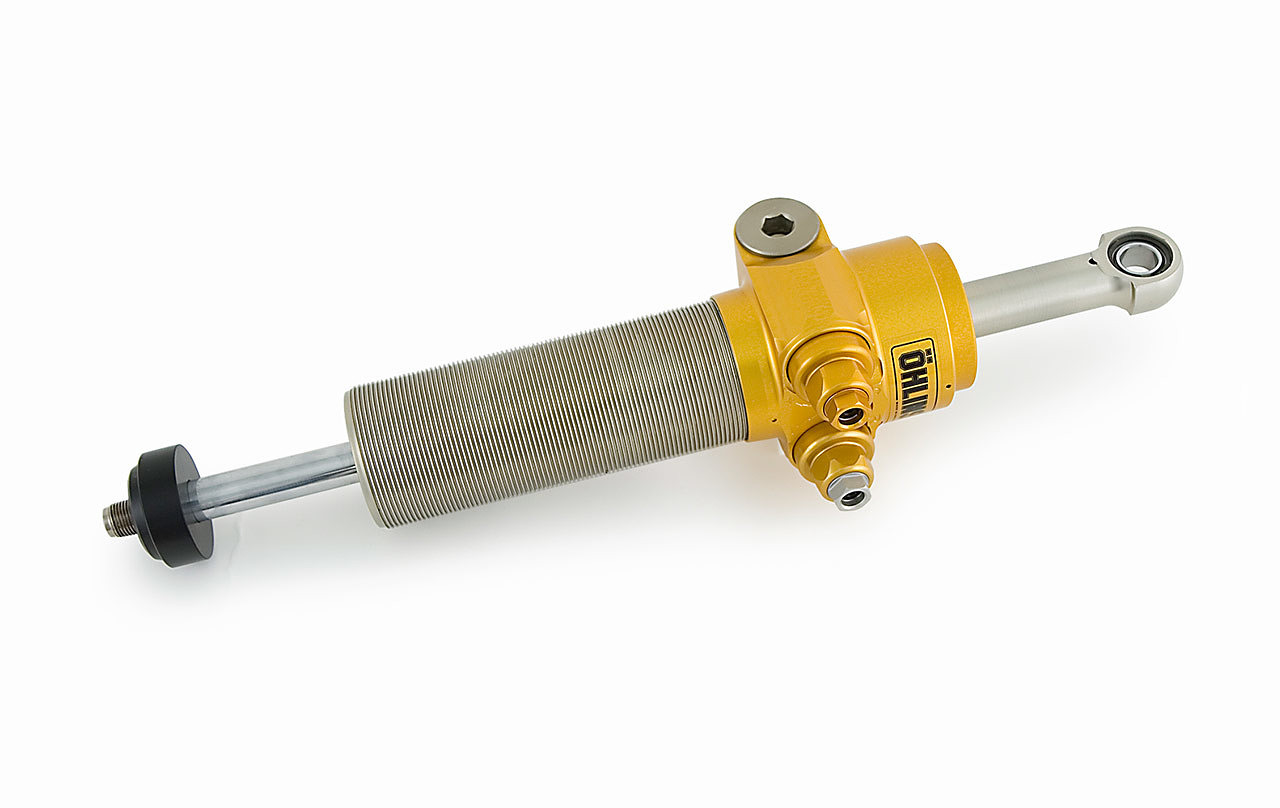

Öhlins TTX 40

The four-way adjustable TTX40. Winner in Le Mans, Indy Car, touring cars, sports cars and GT-racing. Among others.

Description

Ever since the its introduction this high-end level racing damper has been a winner in top level racing around the globe.

The TTX 40 twin tube damper features a 40 mm solid piston and a through rod shaft which eliminates the requirement of an external reservoir. The design is fully pressure balanced with a positive pressure build-up throughout the adjustment range, eliminating the risk for cavitation as well as enabling the use of low gas pressure, keeping the internal friction at bay. The top eye can easily be re-clocked without opening the damper.

The TTX 40 is a fully independent four-way adjustable damper. The MkII version also comes with a Valve Reference Program. This computer model of a dyno will allow you to find damping curves without a dynamometer. It reduces building time tremendously and allow exact damping adjustment out in the pit lane.

The TTX 40 is also available with a Blow Off piston kit. The advantage with this kit is that it reduces peak loads. This makes driving over curbs smother, saves tires and reduces the resik of getting flat tires.

The damper can be modified to suit most of the different types of racing cars and covers a wide range of car types and models. The TTX 40 is also available in a two-way adjustable version for some models.

  • TTX-technology
  • 40 mm solid piston
  • 4-way adjusted, compression and rebound
  • High end racing damper
  • Valve Reference Program
  • Available with a blow-off piston kit
  • Suitable for Le Mans style prototypes, single seaters, touring cars, sports cars and GT-cars
