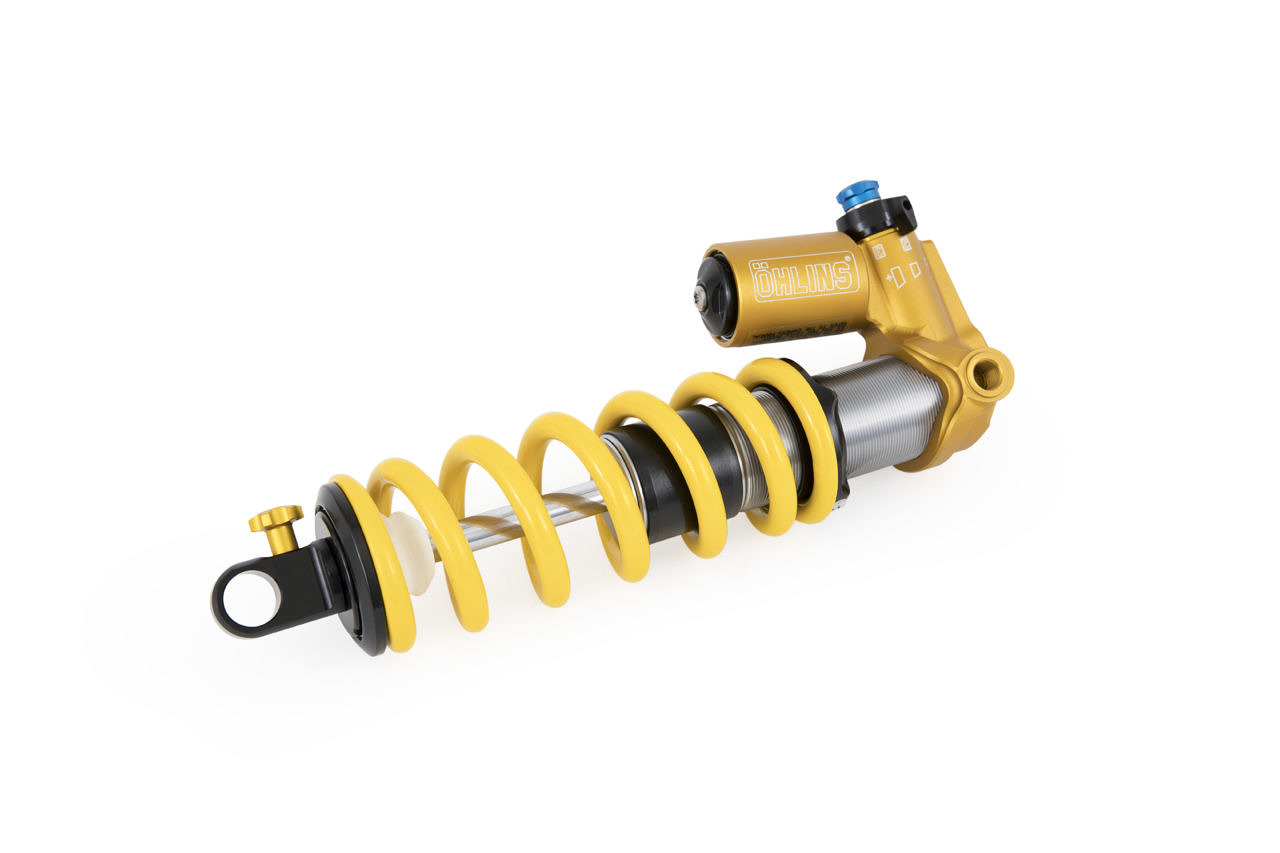

Öhlins TTX22M Trunnion
Supreme levels of big hit performance combined with excellent traction and control make the TTX22M Trunnion the ultimate shock for gravity riders – which now comes in a more compact package with all the advantages of metric sizing
![](/img/mountain-bikes/trial-and-enduro/ttx22m-trunnion.jpg)
Description
Supreme levels of big hit performance combined with excellent traction and control make the TTX22M Trunnion the ultimate shock for gravity riders – which now comes in a more compact package with all the advantages of metric sizing
- TTX-technology
- Specifically designed for the enduro/gravity circuit
- Nitrogen pressurized bladder reservoir system
- Available in in metric lengths/strokes
- 185 x 55/50mm
- 205 x 65/60mm
- 225 x 75/70mm
- Possible to decrease stroke with 2.5 mm using spacer in the box or exchanging stop cap at a service center
- Spring weight has been reduced
- Easy to set up with enough adjustment range to suit different riding conditions
- External, three level, high-speed compression adjustment
- External, 16 click low-speed compression adjustment rebound damping adjustment
- External, 7 click rebound adjustment
- Weight : 480g (Based on 225x70mm)
