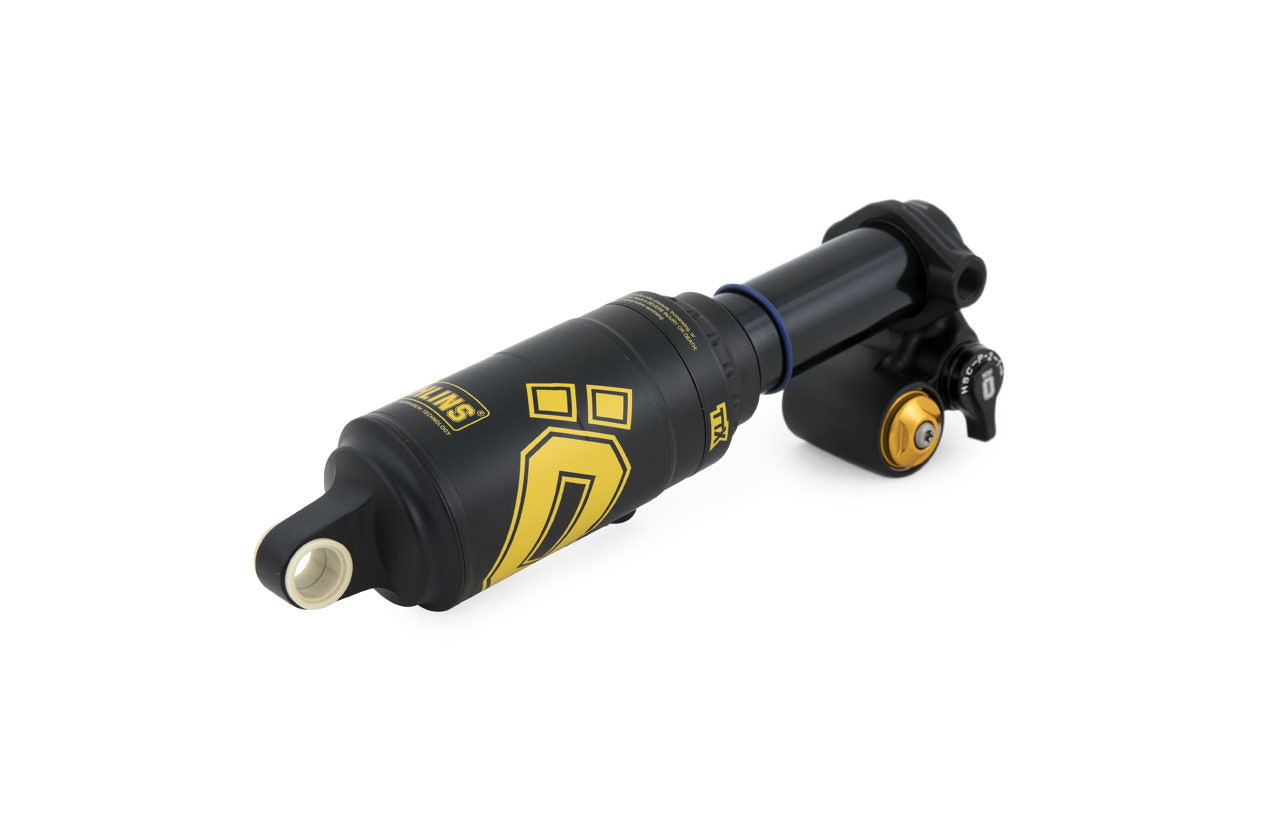

Öhlins TTX2Air Trunnion

Our high performance, robust air-sprung shock is best suited to bikes with more progressive linkage ratios. The TTX2Air has larger positive and negative air chamber volumes, double-can and an air spring design with additional control of the air volume spacing. Giving riders greater freedom to adjust the spring curve and easily dial-in the exact amount of progression they desire. The Trunnion version also enables riders to fit a longer shock within a more compact frame area.

The TTX2Air delivers the unrivalled sensitivity, control and flawless all-conditions damping that TTX products have built their reputation on.

Initial set-up of the TTX2Air shock is really easy to do – check out the video here. We’ve made more involved tuning, such as altering volume spacers or adjusting the stroke, as straightforward as possible so it can be performed even with basic skills.

Once dialled-in, you’ll immediately appreciate the shock’s super-plush feel that increases comfort over long, demanding rides, maintains momentum over roots and rocks and also has the capacity to soak up more serious hits. The TTX2Air’s superb levels of confidence inspiring traction and control will encourage you to push your bike harder and faster than ever before.

The TTX2Air combines the superior damping function of our TTX system together with a low friction air-spring. The twin-tubed design enables two-way oil flow through the piston and the double tubes. With the ability to extensively tune the pressure when the oil passes the compression and rebound valves, we have created a well-balanced and extremely predictable damper. This results in a highly effective range of clicks enabling you to easily dial-in the shock and achieve the perfect suspension set-up. We’ve also increased the maximum air pressure capacity to handle a larger range of riders and the additional demands of e-MTB bikes.

The TTX2Air upgrades an already proven package of damping performance. The metric system design has also allowed us to increase the bushing overlap, making it more robust and improving side load protection. Our wiper seal and air sleeve lubrication technology minimizes friction and delivers outstanding performance that resists fading between service intervals.

Just like every product fitted with TTX damping technology, the TTX2Air has a race-proven settings bank giving access to a huge range of options for tuning the damper to suit any specific rider, bike or riding style.

• TTX highly adjustable compression valve technology
• Double-can design with larger air volume in both positive and negative chambers
• Adjustable HSC (High-Speed Compression), LSC (Low-Speed Compression) and rebound damping
• Climb mode
• Race proven setting bank, to suit any type of riding or linkage design
• Air-spring volume spacers included as standard in the shock kit
• Available in trunnion metric lengths
• 165 x 45/42.5/40/37.5mm
• 185 x 55/52.5/50/47.5mm
• 205 x 65/62.5/60/57.5mm
• Maximum air pressure up to 325 psi
• Delivered with the longest stroke, plus the additional parts required to alter the stroke
